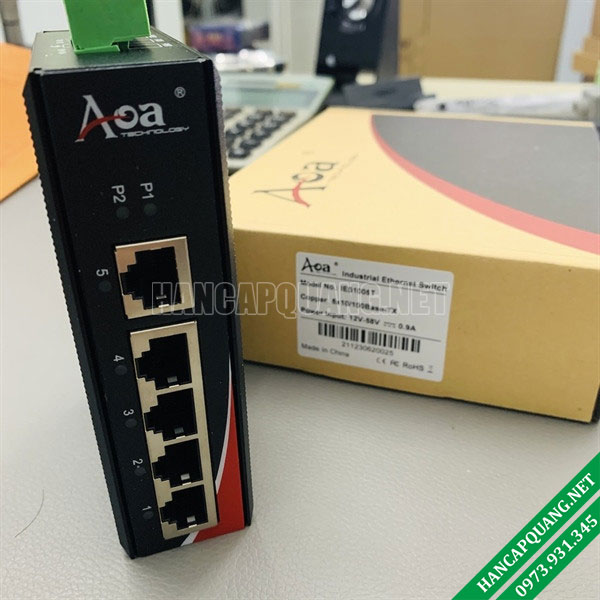

Industrial Switch 5×10/100M IES1005T – AOA
Giá gốc là: 1.600.000₫.1.500.000₫Giá hiện tại là: 1.500.000₫.
- Giảm 10% khi mua đơn hàng trên 30tr
- Giảm 5% khi mua đơn hàng trên 20tr
Switch công nghiệp 5×10/100M IES1005T – AOA – Dual Power DC12V-58V, DIN Rail.
IES1005 series Industrial Ethernet Switch adopt store-and-forward architecture, fan-less and energy-saving design to provide reliable and stable operation in harsh industrial environments.
All the switches support 12-58Vdc dual power input and operate at temperature of -40 ~ 85°C.
The PoE models compliance with IEEE 802.3af/at standard, 48~58Vdc dual power input. While using standard Cat5/5e/6 cables that carry Ethernet data, the switch can also provide power to a Powered Devices,such as VoIP phones, video cameras, wireless access points, alarms, traffic controllers, sensors and tracking devices.
The full series is widely used in intelligent transportation(ITS), Safe City, New Energy, port, mining plant, water conservancy, electric power system and other industrial scenes.
Đặc điểm nổi bật của switch công nghiệp IES1005T – AOA
- Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX Ethernet standard
- Supports auto negotiation and 10/100Mbps half / full duplex mode for each copper port
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- Automatic address learning and address aging
- 12~58Vdc redundant power input with polarity reverse protection
- IP-40 protection aluminium alloy case for rapid heat dissipation
- DIN rail and wall-mount design
- 6Kv surge protection for power port and copper port
- 8Kv/15Kv ESD protection
- Low power consumption
- CE/FCC/RoHS compliance
Thông số kỹ thuật của IES1005T
| Model | IES1005-5T(4T1S) | IES1005-4P1T(4P1S) |
| Performance | ||
| Standard | IEEE802.3 10Base-T
IEEE802.3u 100Base-TX and 100Base-FX IEEE802.3x Flow control and back pressure |
|
| Processing type | Store and Forward | |
| Switch Capacity | 1Gbps/non-blocking | |
| Packet forwarding Rate | 0.744Mpps | |
| MAC address | 2Kbit | |
| Buffer Space | 512Kbit | |
| Max. packet length | 2048bits | |
| Interface | ||
| Copper port | 10/100M Auto-negotiation, RJ45 Auto-Cross for MDI/MDIX
Cat5/Cat5e/Cat6, ≤100m |
|
| Fiber port | 155M SFP
OS1/OS2 ≤120km; OM1/OM2 ≤550m/2km |
|
| Power Port | Terminal Block | |
| LED indicators | Power, Speed, Link/Act, PoE, Fiber | |
| PoE Function | ||
| Standard | / | IEE802.3af/at |
| Pin Assignment | / | 1/2(+), 3/6(-) |
| PoE Budget | / | ≤120W |
| Electrical characteristics | ||
| Input Voltage | 12~58Vdc | 48~58Vdc |
| Power Consumption | <3W | <123W |
| Physical characteristics | ||
| Enclosure | IP40 , Aluminum Alloy | |
| Installation | DIN-rail (default); Wall-mounted, Rack-mounted ( Optional kits) | |
| Dimension | 115x81x34.5mm | |
| Weight | 310g | |
| Environment | ||
| Working Temperature | -40 ˚C ~ +85 ˚C | |
| Relative Humidity | 5-95% (no condensation) | |
Thông tin đặt hàng
| Model | Description |
| IES1005-5T | 10/100M 5-port |
| IES1005-4T1S | 10/100M 4-RJ45, 1-SFP slot |
| IES1005-4P1T | 10/100M 4-RJ45 (PoE), 1-RJ45 |
| IES1005-4P1S | 10/100M 4-RJ45 (PoE), 1-SFP slot |
| Note: AC/DC power supply purchased separately | |
Các sản phẩm liên quan
| Model | Description |
| DIN-rail Power supply | |
| HDR-15-24 | DIN-rail 15W, 85~264Vac input, 24V0.63A output |
| NDR-75-48 | DIN-rail 75W, 90~264Vac input, 48~55Vdc output |
| NDR-120-48 | DIN-rail 120W, 90~264Vac input, 48~55Vdc output |
| SFP Module | |
| SFP-M1585L-02I | 155M MM 850nm LC 550m DDM, Industrial Grade |
| SFP-M1513L-02I | 155M MM 1310nm LC 2km DDM, Industrial Grade |
| SFP-S1513L-20I | 155M SM 1310nm LC 20km DDM, Industrial Grade |
| SFP-S1535L-20I | 155M SM TX1310/RX1550nm LC 20km DDM, Industrial Grade |
| SFP-S1553L-20I | 155M SM TX1550/RX1310nm LC 20km DDM, Industrial Grade |
| Long distance 40/60/80/100/120km is available | |
| Installation Accessories | |
| TK12 | Wall-mounted kits, 118*18*16mm, φ3.5mm L=12mm |
| A02 | Side DIN-rail mounted kits, 72.7*70*8.5mm, φ3.5mm L=6mm |
| CK01 | Rack-mounted bracket with Din-rail, 483*215*130mm |
