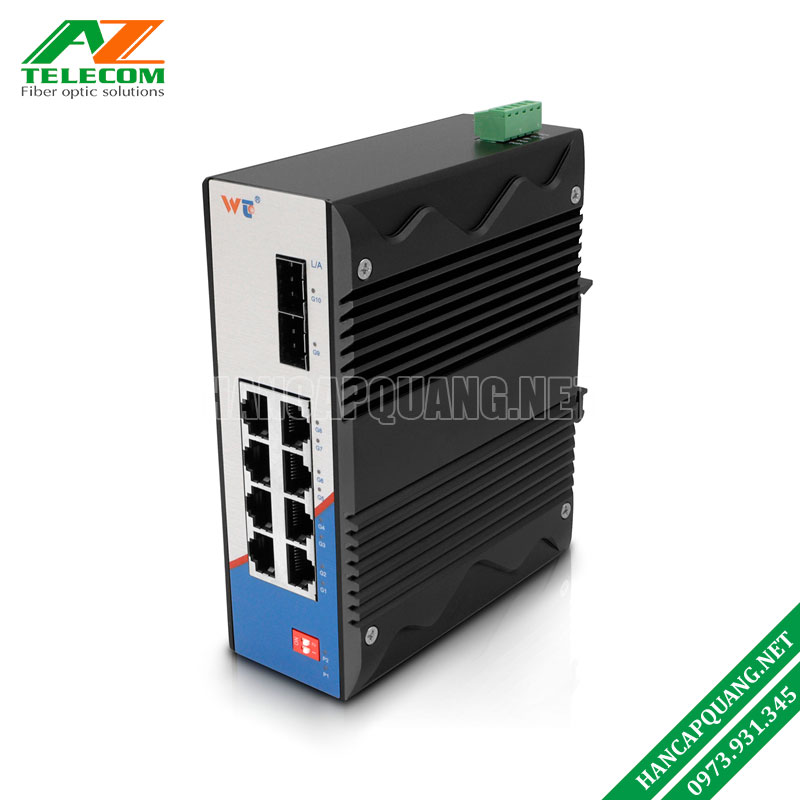

Switch Công Nghiệp RS6310-2GF8GT Layer 2 Managed

Thông số kỹ thuật Switch Layer 2 Managed RS6310-2GF8GT

Applicable standards

• IEEE 802.3 10BaseT
• IEEE 802.3u 100BaseT
• IEEE 802.3z 1000BaseFX and 1000BaseT
• IEEE 802.3x flow control
• IEEE 802.1d-2004 STP protocol
• IEEE 802.1w RSTP protocol
• IEEE 802.1p Qos
• IEEE 802.1q VLAN
• IGMP Snooping, SNMPv1/v2c
• HTTP, DHCP Client

Switching feature

• Qos queue: 8 VLAN-ID: 1-4094
• Back plane bandwidth: 20 Gbps List of MAC addresses: 8K
• Message buffer size: 4.1Mbit

Port

• Fiber port: 1000 Mbps
• Copper port: 10/100/1000 Mbps self-adaptive, Full/Half duplex mode, MDI/MDI-X supported.
• LED indicator: P1, P2, RUN, L/A

Power source requirement

• Input voltage: DC 9~48 V (redundancy)
• Full-load power consumption: 7W
• Input current: Maximum DC current, 1A

Physical properties

• Enclosure: Aluminum enclosure, IP40-rated protection
• Size: 142 × 116 × 51 mm
• Weight: 850 g

Mounting method: Guide rail type

Environmental restrictions

• Working temperature: -40 ~ 85°C (-40 ~ 185°F)
• Storage temperature: -40 ~ 85°C (-40 ~ 185°F)
• Relative ambient humidity: 5 ~ 95% (non-condensing)

Standards and certification

EMS:

• IEC61000-4-2(ESD) level 4, IEC 61000-4-4 (EFT) level 4, IEC 61000-4-5(Surge) level 4
• Anti-vibration performance: IEC 60068-2-6
• Shock resistance: IEC 60068-2-27
• Free fall: IEC 60068-2-32
• Note: Please go to the official website of Wintop Optical for the latest certification status.
• MTBF (mean time between failures)
• Time: 500000 h
• Warranty Quality assurance: 5 years
